Slim Line Non-Locking Safety Switches

$191.00$254.00 /

2 NO and 1 NC Safety Contacts

Clear

Product Description

Tamper-Resistant, Slim Line Non-Locking Safety Switches –

These tamper-resistant safety switches can be used to interlock hinged, sliding, or lift-off guards. Closure of the guard or latch causes the actuator to enter the switch and release the dual anti-tamper locking cams. The actuator allows the main center cam to rotate and make the switch contacts. When opening the guard or latch, the actuator positively forces the contacts open due to the cam action built into the switch.

The slim line design is ideal for tight spaces. These versatile switches have multiple actuation entry positions.

Contact arrangement is with actuator engaged.

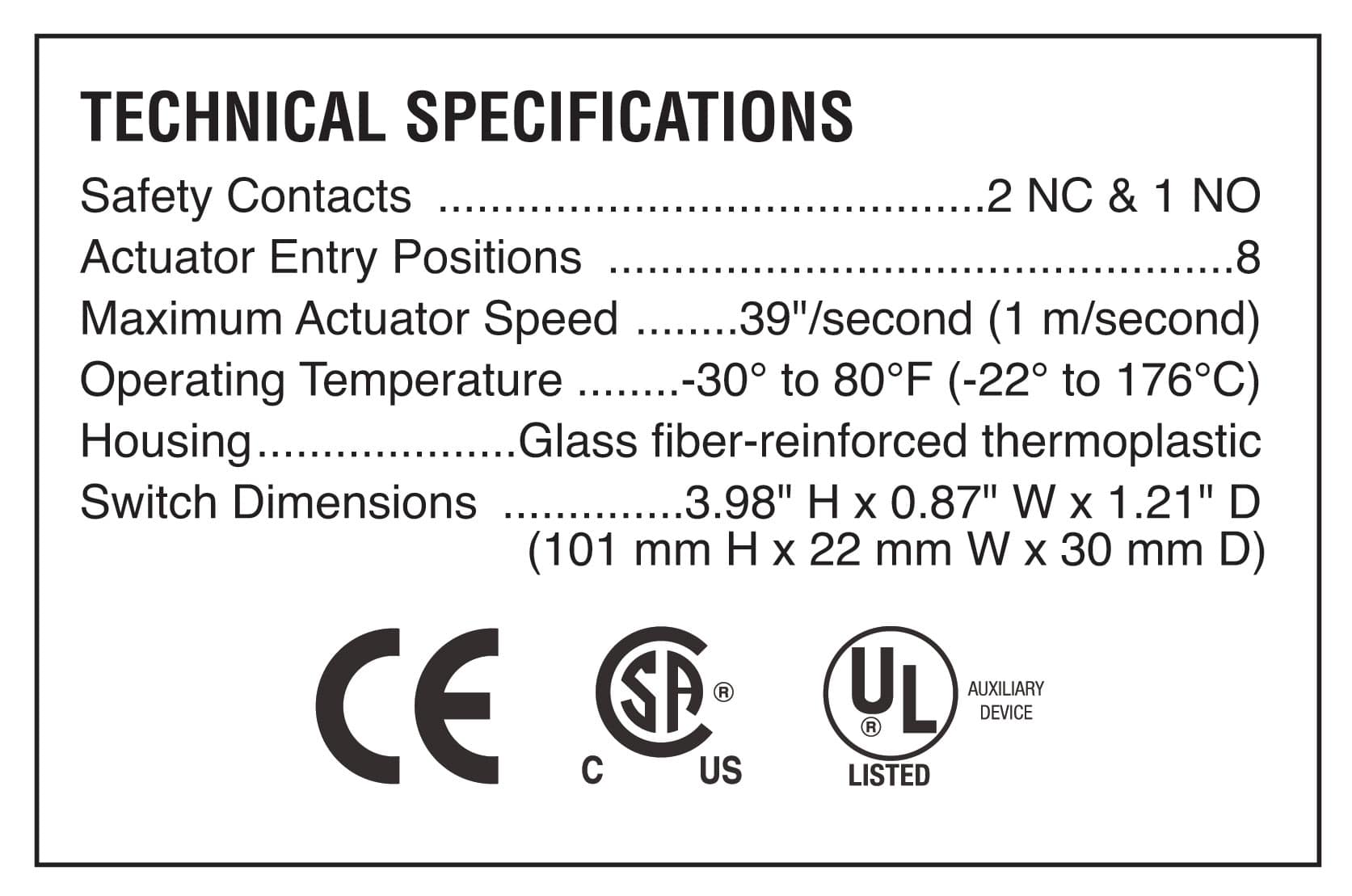

cmc546_547_548-d

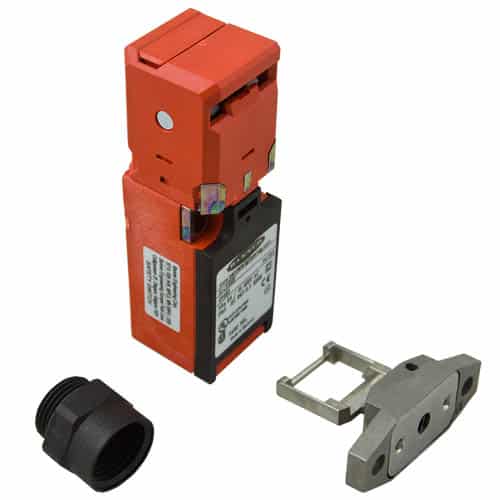

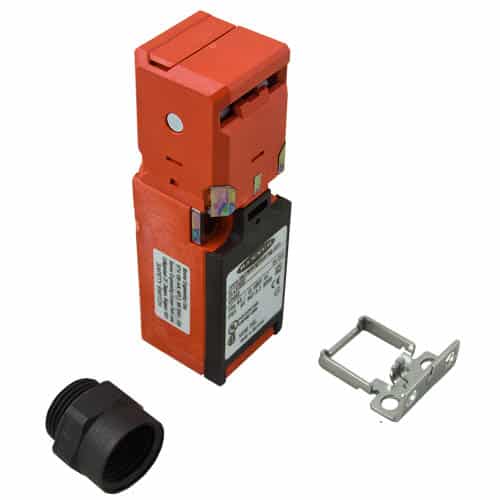

Kit includes switch, straight actuator, and conduit adapter.
