On/Off Magnetic-Base Shields

$535.19$685.61 /

Clear

Product Description

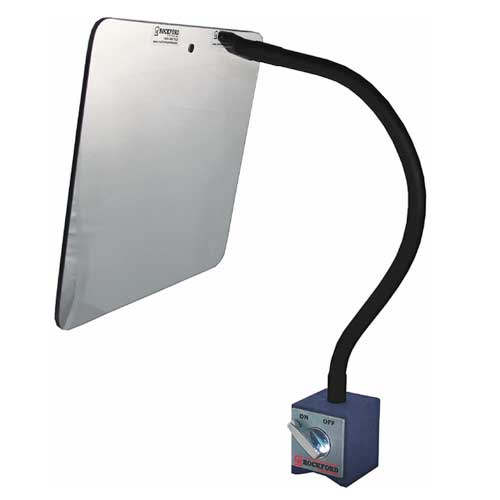

On/Off Magnetic-Base Shields for Various Machinery Applications –

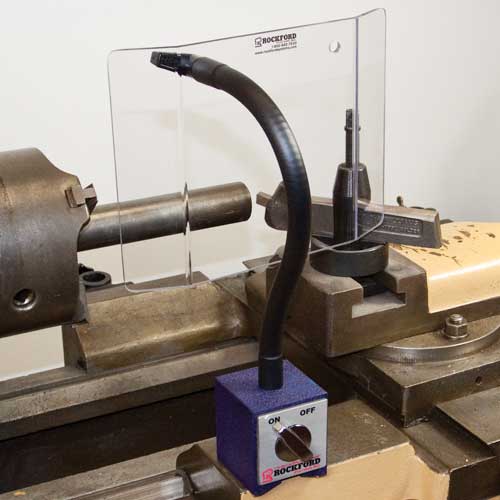

These versatile On-Off magnet-base shields can be used on lathes, drills, mills, grinders, or any equipment that has a flat, ferrous mounting surface. The heavy-duty magnetic base is 2 3/4-inch square with a V-groove and measures 3-inches high. The 200-lb holding force keeps the shield in place when the magnet is on. If an adequate flat, ferrous mounting surface is not available, an optional steel mounting plate (Part No. FKT-1106; see below) can be permanently attached to the machine to hold the magnetic base.

If an adequate flat, smooth, ferrous mounting surface is not available, an optional steel mounting plate (Part No. FKT-1106) can be permanently attached to the machine to hold the magnetic base.

The 12-inch, 18-inch, and 24-inch flexible arms are made of spring steel and are covered with vinyl to protect them from grease, oil, and contaminants that would weaken their holding power. They offer virtually unlimited adjustment possibilities and have long-term holding power.

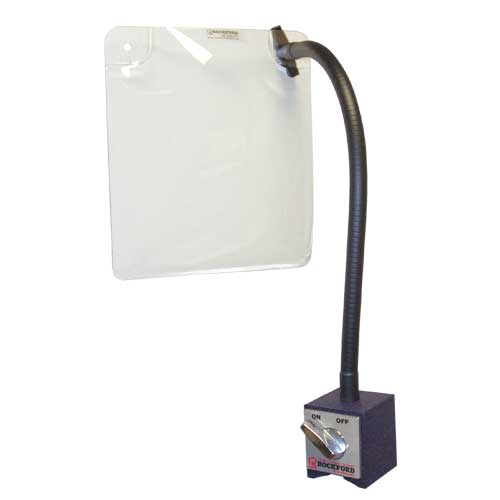

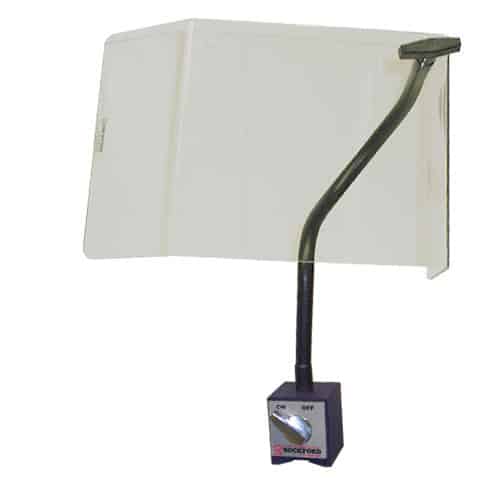

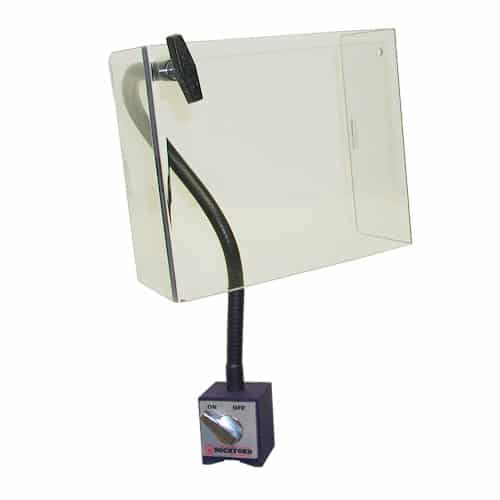

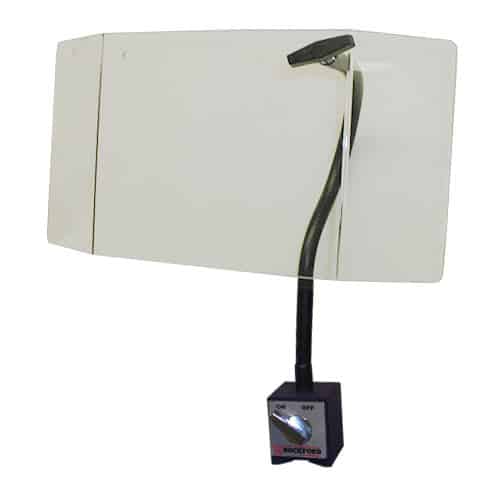

The transparent portion of these shields is constructed of high-impact-resistant, 3/16-inch-thick clear polycarbonate. The shield places a barrier between an operator and the flying chips (swarf), sparks, and coolant generated at the point of operation. A variety of flat, angled, and concave shields are available.

Copolymer Lock-Arm Shields No Longer Available

These part numbers are no longer available. Please select Shield Type and Arm Length above to order similar part.

KYL298 – 6-inch x 6-inch Flat Shield with 12-inch Arm
KYL299 – 6-inch x 6-inch Flat Shield with 18-inch Arm
KYL300 – 6-inch x 6-inch Flat Shield with 24-inch Arm
KYL301 – 6-inch x 8-inch Flat Shield With 12-inch Arm
KYL302 – 6-inch x 8-inch Flat Shield With 18-inch Arm
KYL303 – 6-inch x 8-inch Flat Shield With 24-inch Arm
KYL304 – 18-inch x 6-inch Flat Shield With 12-inch Arm
KYL305 – 18-inch x 6-inch Flat Shield With 18-inch Arm
KYL306 – 18-inch x 6-inch Flat Shield With 24-inch Arm
KYL307 – 10-inch x 12-inch Flat Shield With 12-inch Arm
KYL308 – 10-inch x 12-inch Flat Shield With 18-inch Arm
KYL309 – 10-inch x 12-inch Flat Shield With 24-inch Arm
KYL310 – 30-degree Angle (7-inch Front) Shield With 12-inch Arm
KYL311 – 30-degree Angle (7-inch Front) Shield With 18-inch Arm
KYL312 – 30-degree Angle (7-inch Front) Shield With 24-inch Arm
KYL313 – 8-inch x 10-inch Concave Shield With 12-inch Arm
KYL314 – 8-inch x 10-inch Concave Shield With 18-inch Arm
KYL315 – 8-inch x 10-inch Concave Shield With 24-inch Arm

OSHA 1910.212 – General Safety Requirements / ANSI B11.8 – Manual Drilling Machines / ANSI B11.23 – CNC Drilling Machines

CREATING A SAFER WORK ENVIRONMENT

Check out the patent-pending PROTECTOR Series Shields offering the highest level of safety on the market!


FEATURES & BENEFITS

    ROBUST CONSTRUCTION

PROTECTOR Series Shields are constructed of 14-gauge powder-coated steel and 3/16” shock-proof and oil-resistant polycarbonate, creating an extremely tough, rigid and durable safety shield to protect operators from flying debris, lubricants, coolants and swarf.

    MODULAR DESIGN

PROTECTOR Series Shields are modular in design so that shield shape, size, mount, arm, offset, lighting, interlocking and safety monitoring can be configured to provide the best solution for even the toughest machine guarding challenge.

    WORKSPACE SAFETY LIGHTING

PROTECTOR Series Shields can include color-changing LED lighting nested into the frame of the shield to illuminate the work area during machine operation. The LED light strip is integrated into the shield frame and each strip packs 262 Lumens of light per linear foot.

    SAFETY INTERLOCKS & MONITORING

PROTECTOR Series Shields can be upgraded with a safety-rated interlock switch or switches, dependent upon application. Interlocking shields exceed OSHA CFR 1910 regulations and ANSI B11 Series standards, and are considered a best safety practice.

    MADE IN THE USA

PROTECTOR Series Shields are manufactured by Rockford Systems LLC in Rockford, Illinois, USA. All shields are shipped within 2-3 weeks.
