Bench Grinder Safety Shields with Magnetic-Mount Flexible-Arm

$169.00$209.00 /

Clear

Product Description

Bench Grinder Safety Shields with Magnetic-Mount Flexible-Arm –

Double- and Single-wheel shields are available to attach to bench grinders.

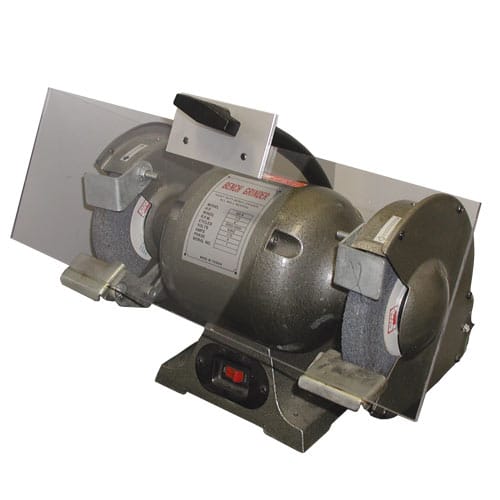

The double-wheel grinder shield provides protection for both wheels of the grinder with one continuous shield. The durable shield is made of clear, 3/16-inch-thick polycarbonate and measures 18-inch x 6-inch. A special shield bracket adds stability to the top of the shield.

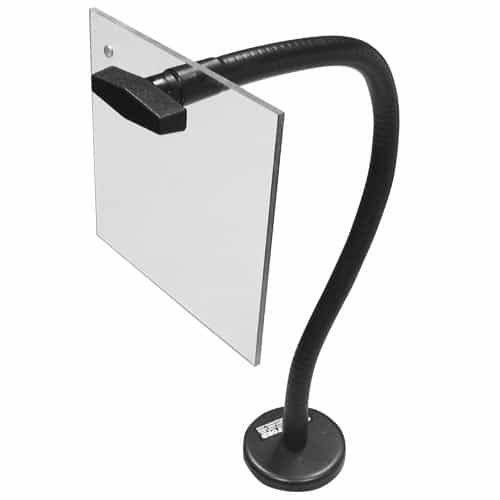

The single-wheel grinder shield is made of clear, 3/16-inch-thick polycarbonate and measures 6-inch x 6-inch. This sturdy, impact-resistant shield is designed for use when a single wheel needs safeguarding.

The shield has a 3-inch diameter magnet base to attach to the machine.

If an adequate flat, smooth, ferrous mounting surface is not available, an optional steel mounting plate (Part No. FKT1106) is available that can be permanently attached to the machine to hold the magnetic base.

Copolymer Lock-Arm Shields No Longer Available

These part numbers are no longer available. Please select Shield Type and Arm Length above to order similar part.

KYL281 – 18-inch Magnetic-Mount Copolymer Lock-Arm With 6-inch x 6-inch Shield
KYL282 – 24-inch Magnetic-Mount Copolymer Lock-Arm With 6-inch x 6-inch Shield
KYL286 – 12-inch Magnetic-Mount Copolymer Lock-Arm With 18-inch x 6-inch Shield
KYL287 – 18-inch Magnetic-Mount Copolymer Lock-Arm With 18-inch x 6-inch Shield
KYL288 – 24-inch Magnetic-Mount Copolymer Lock-Arm With 18-inch x 6-inch Shield

CREATING A SAFER WORK ENVIRONMENT

Check out the patent-pending PROTECTOR Series Shields offering the highest level of safety on the market!


FEATURES & BENEFITS

    ROBUST CONSTRUCTION

PROTECTOR Series Shields are constructed of 14-gauge powder-coated steel and 3/16” shock-proof and oil-resistant polycarbonate, creating an extremely tough, rigid and durable safety shield to protect operators from flying debris, lubricants, coolants and swarf.

    MODULAR DESIGN

PROTECTOR Series Shields are modular in design so that shield shape, size, mount, arm, offset, lighting, interlocking and safety monitoring can be configured to provide the best solution for even the toughest machine guarding challenge.

    WORKSPACE SAFETY LIGHTING

PROTECTOR Series Shields can include color-changing LED lighting nested into the frame of the shield to illuminate the work area during machine operation. The LED light strip is integrated into the shield frame and each strip packs 262 Lumens of light per linear foot.

    SAFETY INTERLOCKS & MONITORING

PROTECTOR Series Shields can be upgraded with a safety-rated interlock switch or switches, dependent upon application. Interlocking shields exceed OSHA CFR 1910 regulations and ANSI B11 Series standards, and are considered a best safety practice.

    MADE IN THE USA

PROTECTOR Series Shields are manufactured by Rockford Systems LLC in Rockford, Illinois, USA. All shields are shipped within 2-3 weeks.
