Enclosed Transformers

Direct Frame-Mounting Station, Enclosed Transformers

These transformers comply with OSHA regulations and ANSI standards and are available for use when the motor start/stop station is remotely located from the starter enclosure, and voltage to these buttons must be 115 V or less. These transformers mount directly to the frame of the machine. If the existing motor starter operating coils are a higher voltage (208, 230, 460, 575 V), they must be replaced with a 115-V coil when furnishing these transformers.

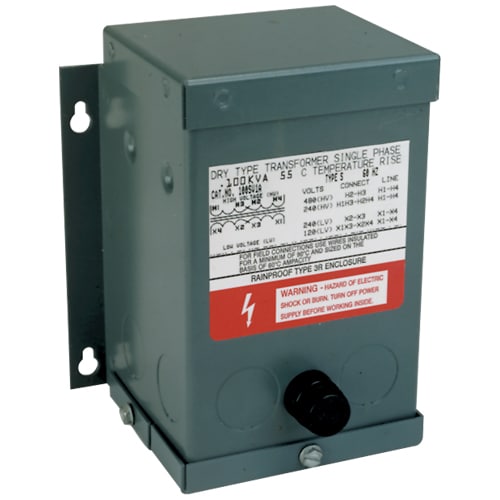

Part No. RSF-021 This enclosed transformer is a 100-VA, 230/460-V primary and a 115-V fused secondary unit. The fuse is 1 A, 230 V and it is accessible from the outside of the transformer housing.

Part No. RSF-030 This enclosed transformer is a 150-VA, 230/460-V primary and a 115-V fused secondary unit. The fuse is 1.5 A, 230 V and it is accessible from the outside of the transformer housing.
