Bench Grinder Safety Shields with Direct-Mount Flexible-Arm –
Double- and Single-wheel bench grinder shields are available to attach to bench grinders.

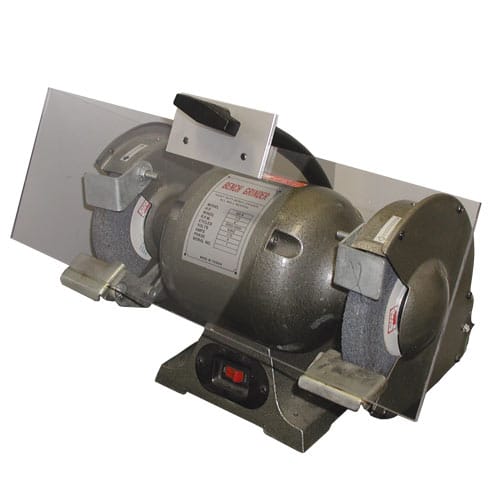

Double-wheel bench grinder shields provide protection for both wheels of the grinder with one continuous shield. The durable shield is made of clear, 3/16-inch-thick polycarbonate and measures 18-inch x 6-inch. A special shield bracket adds stability to the top of the shield.
The single-wheel bench grinder shield is made of clear, 3/16-inch-thick polycarbonate and measures 6-inch x 6-inch. This sturdy, impact-resistant shield is designed for use when a single wheel needs safeguarding.
These shields have a direct-mount base that attaches directly to the grinder table or pedestal.
Magnetic-Mount Flexible Arm Bench Grinder Shields are also available.
Copolymer Lock-Arm Shields No Longer Available
These part numbers are no longer available. Please select Shield Type and Arm Length above to order similar part.
KYL251 – 18-inch Direct-Mount Copolymer Lock-Arm With 6-inch x 6-inch Shield
KYL252 – 24-inch Direct-Mount Copolymer Lock-Arm With 6-inch x 6-inch Shield
KYL256 – 12-inch Direct-Mount Copolymer Lock-Arm With 18-inch x 6-inch Shield
KYL257 – 18-inch Direct-Mount Copolymer Lock-Arm With 18-inch x 6-inch Shield
KYL258 – 24-inch Direct-Mount Copolymer Lock-Arm With 18-inch x 6-inch Shield
CREATING A SAFER WORK ENVIRONMENT
Check out the patent-pending PROTECTOR Series Shields offering the highest level of safety on the market!
FEATURES & BENEFITS
PROTECTOR Series Shields are constructed of 14-gauge powder-coated steel and 3/16” shock-proof and oil-resistant polycarbonate, creating an extremely tough, rigid and durable safety shield to protect operators from flying debris, lubricants, coolants and swarf.
PROTECTOR Series Shields are modular in design so that shield shape, size, mount, arm, offset, lighting, interlocking and safety monitoring can be configured to provide the best solution for even the toughest machine guarding challenge.
WORKSPACE SAFETY LIGHTING
PROTECTOR Series Shields can include color-changing LED lighting nested into the frame of the shield to illuminate the work area during machine operation. The LED light strip is integrated into the shield frame and each strip packs 262 Lumens of light per linear foot.
SAFETY INTERLOCKS & MONITORING
PROTECTOR Series Shields can be upgraded with a safety-rated interlock switch or switches, dependent upon application. Interlocking shields exceed OSHA CFR 1910 regulations and ANSI B11 Series standards, and are considered a best safety practice.
PROTECTOR Series Shields are manufactured by Rockford Systems LLC in Rockford, Illinois, USA. All shields are shipped within 2-3 weeks.
PROTECTOR Series Shields Quote Request
