Automatic Sanding Belt Holder

$4,158.92$4,861.90

Product Description

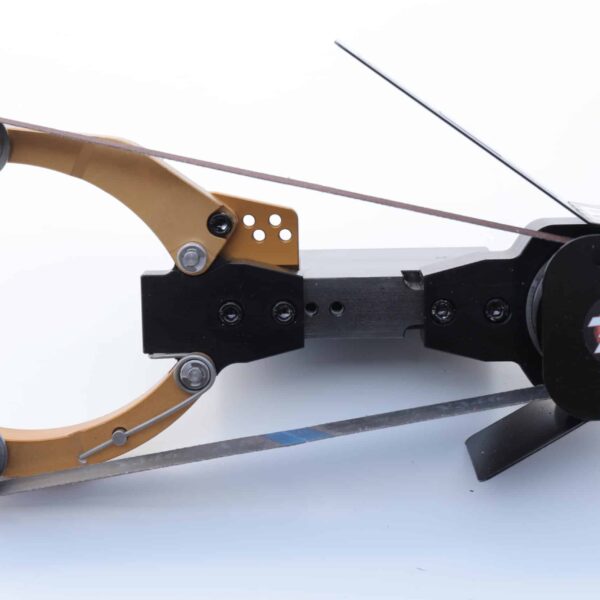

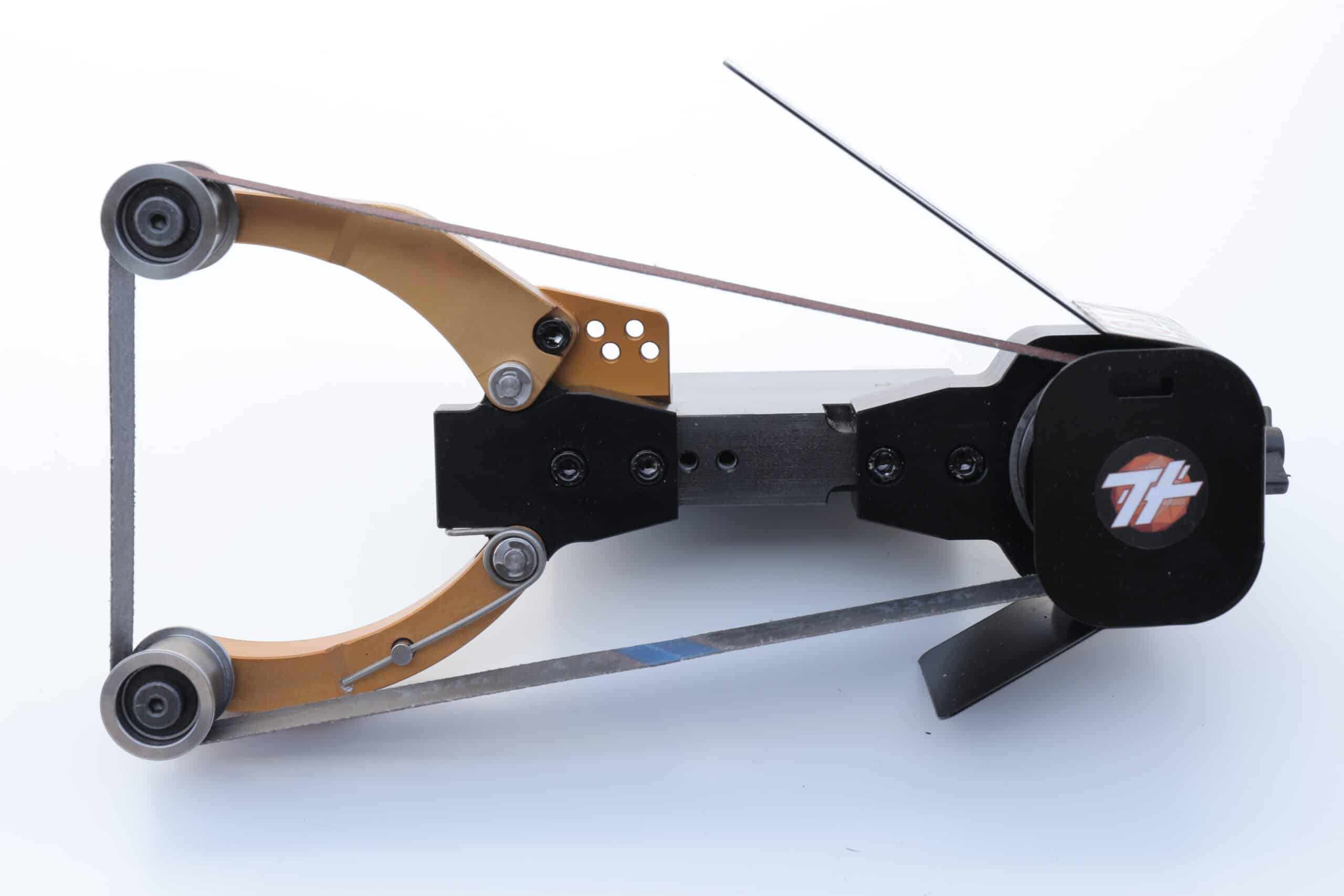

The automatic sanding belt holder enables lathe operators to sand, polish and deburr without using their hands for work execution, keeping hands away at a safe operating distance. The holder is available in 25mm and 50mm sizes and can hold belts of different sizes and abrasion grits. The sanding belt holder meets ISO 23125 6.2.1.P (prohibition to use hands for work execution), which replaces the dangerous sanding operation usually performed by the hands.

The belt holder is fixed to the existing tool-case turret of the lathe and is able to sand bars of different diameters using three different opening positions. The abrasive part of the sanding belt is guaranteed by an automatic, patented sliding system which exploits the rotating movement of the piece worked. Easy to use and installs in minutes. Can be used on metal, alloy and wood.






Sanding belts (2″ x 36″ or 51MM X 914MM) are sold separately in 80, 150, 180, 220 and 320 abrasive grits. See product SKU’s AB080S2, AB150S2, AB180S2, AB220S2, AB320S2 for the sanding belts.

Watch product video HERE

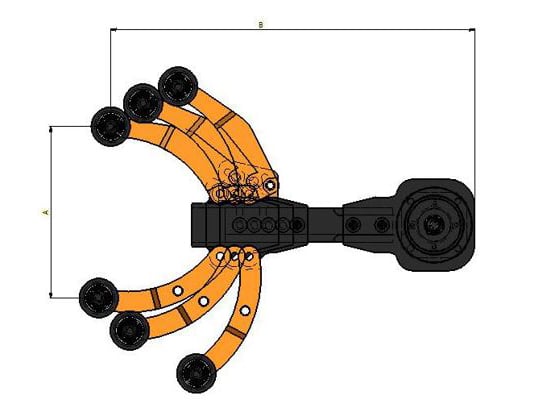

SBHA10 (25mm Belt Holder)

PositionA (mm)B (mm)Belt (mm)
113030025x762
217029525x762
322024025x762

SBHA20 (50mm Belt Holder)

PositionA (mm)B (mm)Belt (mm)
121032550x915
223031550x915
327030550x915
